Max gate weight: 600 kg
Power line supply: 230V AC – 50Hz
Motor power supply: 24V
Power rating: 130W
Frequency of use: Intensive use
Thrust: 50 – 500N
Operating temperature: -20+55°C
Protection level: IP43
Reductor Type: Irreversible
Manoeuvre speed: 26 m/min (0.4 m/s)
Limit switch: Mechanical
Onboard control unit: B70/1DC
Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR
Batteries recovery: Optional 2 internal battery 12V 1,2AH – Optional 2 external battery 12V 4,5AH
Type exit gear: Z15/mod 4
Operating cycles per day (opening/closing – 24 hours no stop): 800
Maximum dimension product in mm (L x W x H): 315 x 165,8 x 329
Product weight packed (Kg): 11,7
Number items per pallet: 44
MOST POPULAR BRANDS, Roger, Sliding Gate Operators

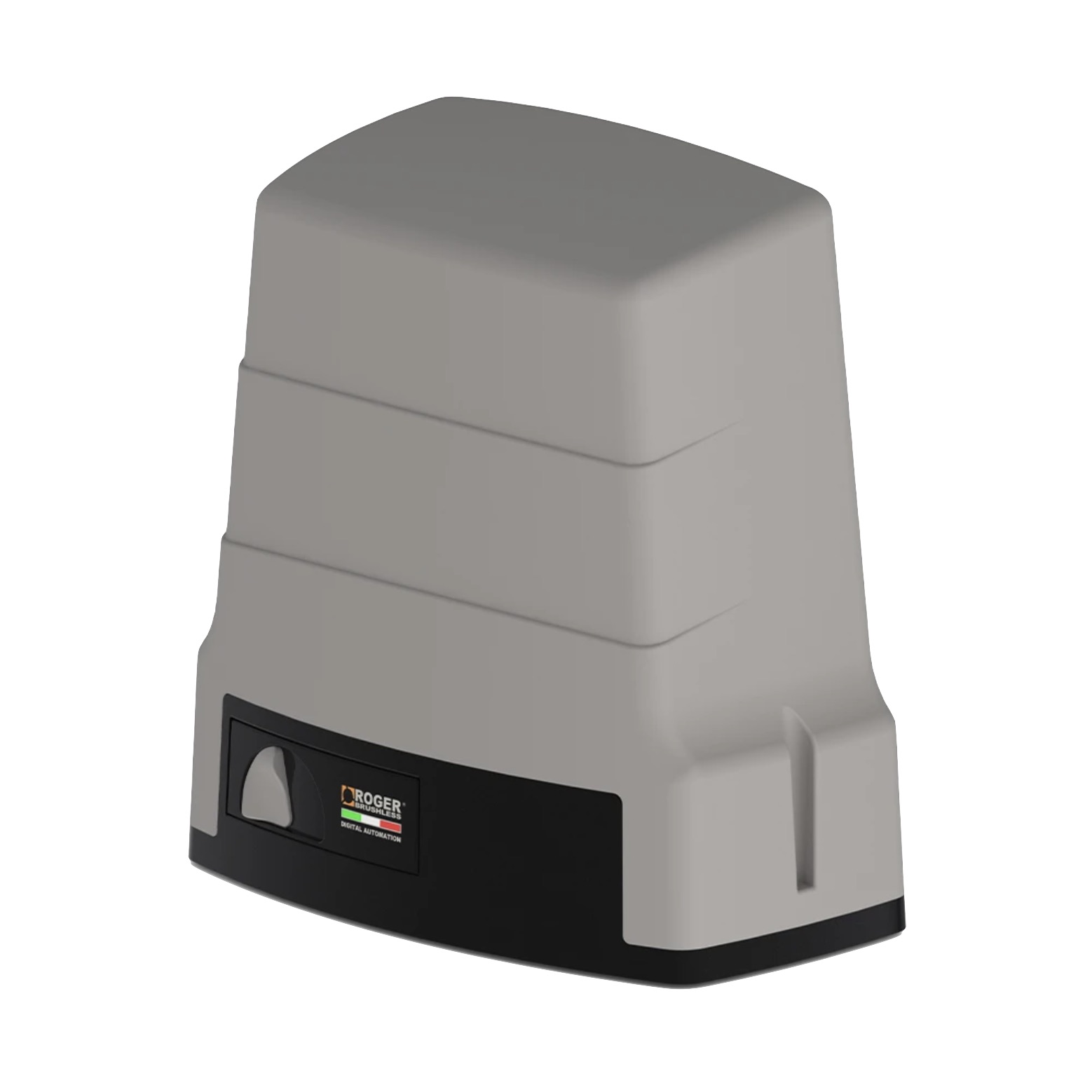

Roger BH30
$1650.00
Electromechanical HIGH SPEED BRUSHLESS motor, low voltage, super intensive use, with native encoder onboard, irreversible ideal for sliding gates up to 600 kg with built-in digital controller B70 series, mechanical limit switch.
