Max gate weight: 1500 kg
Power line supply: 230V AC – 50Hz
Motor power supply: 36V
Power rating: 650W
Frequency of use: Intensive use
Thrust: 50 – 1000N
Operating temperature: -20+55°C
Protection level: IP43
Reductor Type: Irreversible
Manoeuvre speed: 25 m/min (0.42 m/s)
Limit switch: Magnetic
Onboard control unit: B70/1DCHP
Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR
Batteries recovery: Optional 2 external battery 12V 4,5AH
Type exit gear: Z20/mod 4
Operating cycles per day (opening/closing – 24 hours no stop): 800

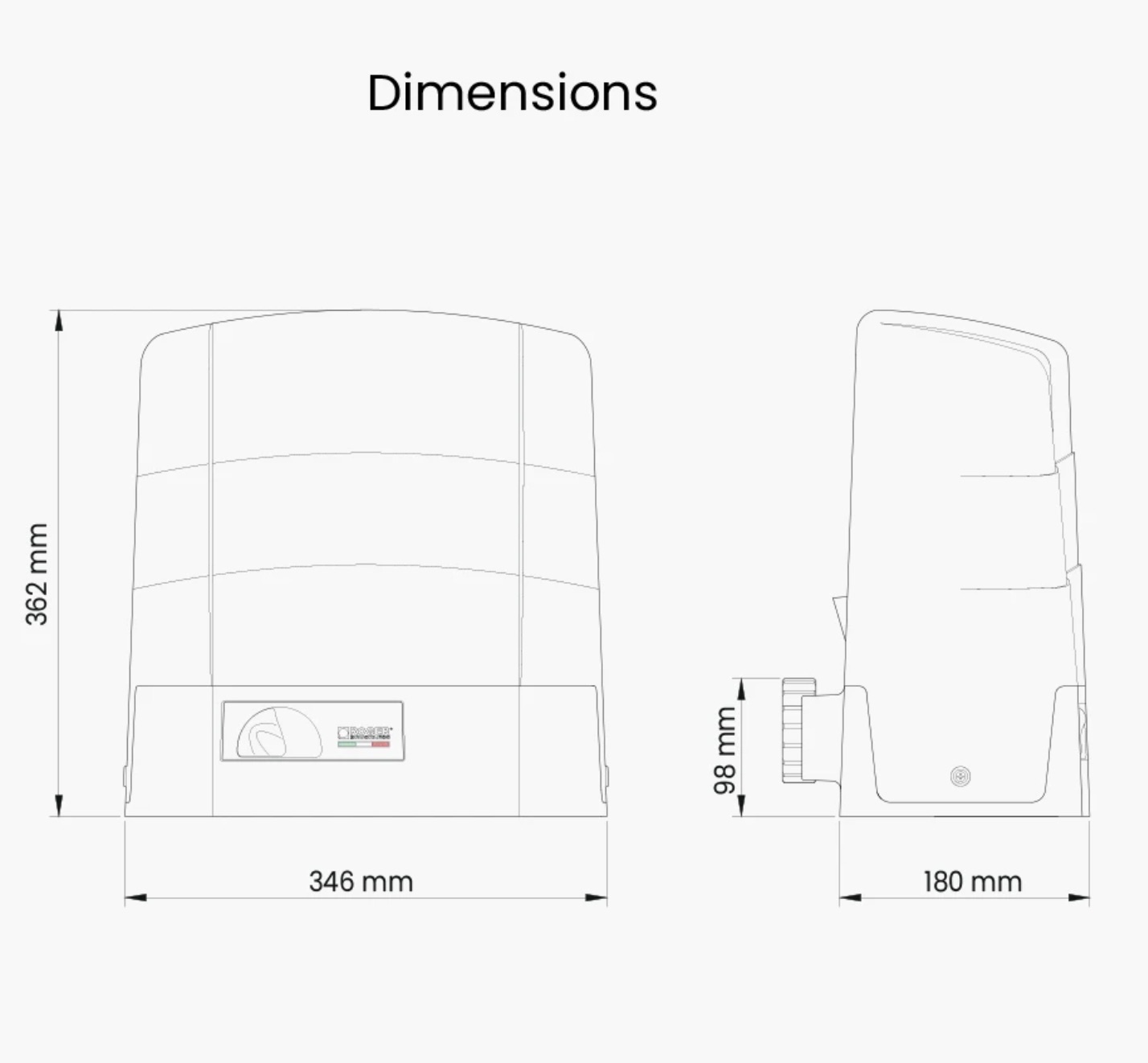

Maximum dimension product in mm (L x W x H): 346 x 180 x 362
Product weight packed (Kg): 20,1
MOST POPULAR BRANDS, Roger, Sliding Gate Operators
Roger BG30
$2250.00
Electromechanical HIGH SPEED BRUSHLESS motor, low voltage, super intensive use, with native encoder onboard, irreversible ideal for sliding gates up to 1500 kg with built-in digital controller B70 series, with magnetic limit switch.
