iGates

,

iGates Safety Beam Wirelless Rotating Eye

$250.00

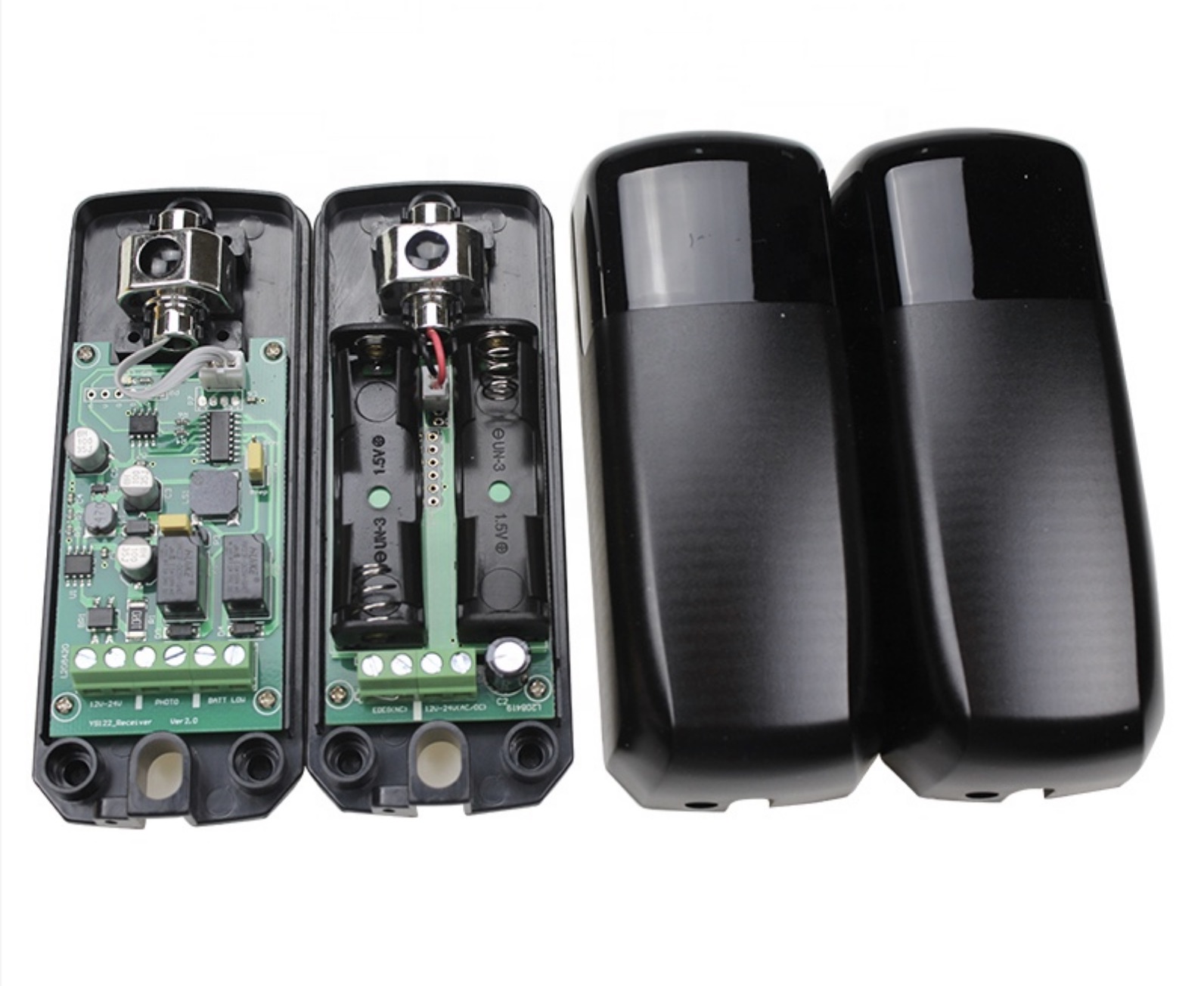

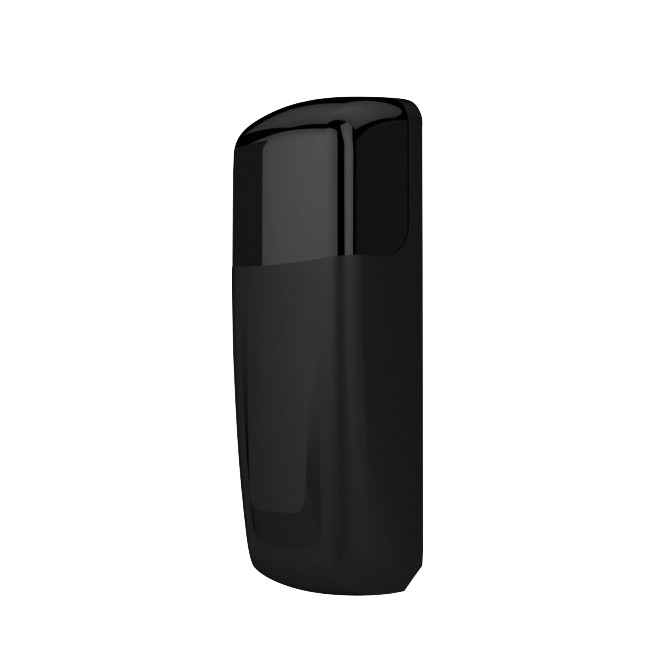

Wireless rotating Safety beam-

SKU: IGHLP5111 Categories: ,

1. Working voltage: 12-24vac-dc and/or 2×1.5 GN15A batteries
2. Working current(24VDC):emitter: :::;8mA – receiver: ::S40mA
3. Photocell wavelength: 940nm
4. Angle of opposite emission: :::;±5°
5. Receiver range: 2′.:12m
6. Internal Rotation system adjusted Angle: 0~180 °
7. Working temperature: -20°~+60°C
8. Relay contact loading capacity: 1A/ 30VDC
9. Waterproof grade: IP54
10. Size: 127*50*35mm
11. Weight: 155g

Download

             Get the manual here…
